Data Shape Flow: DTO → Command → Param → Entity

This page documents how request data flows through the architecture while keeping type ownership local and dependencies pointed inward.

Goal

We want:

No shared type dumping grounds (as much as possible) (e.g., types.ts, constants.ts, common/)
Type ownership near the consumer
Lower-level components depending on their local types (not global ones)
Each layer insulated from the naming + churn of its neighbors

In TypeScript, structural typing (“duck typing”) makes this viable: different named types with the same shape can be passed through safely without creating hard coupling.

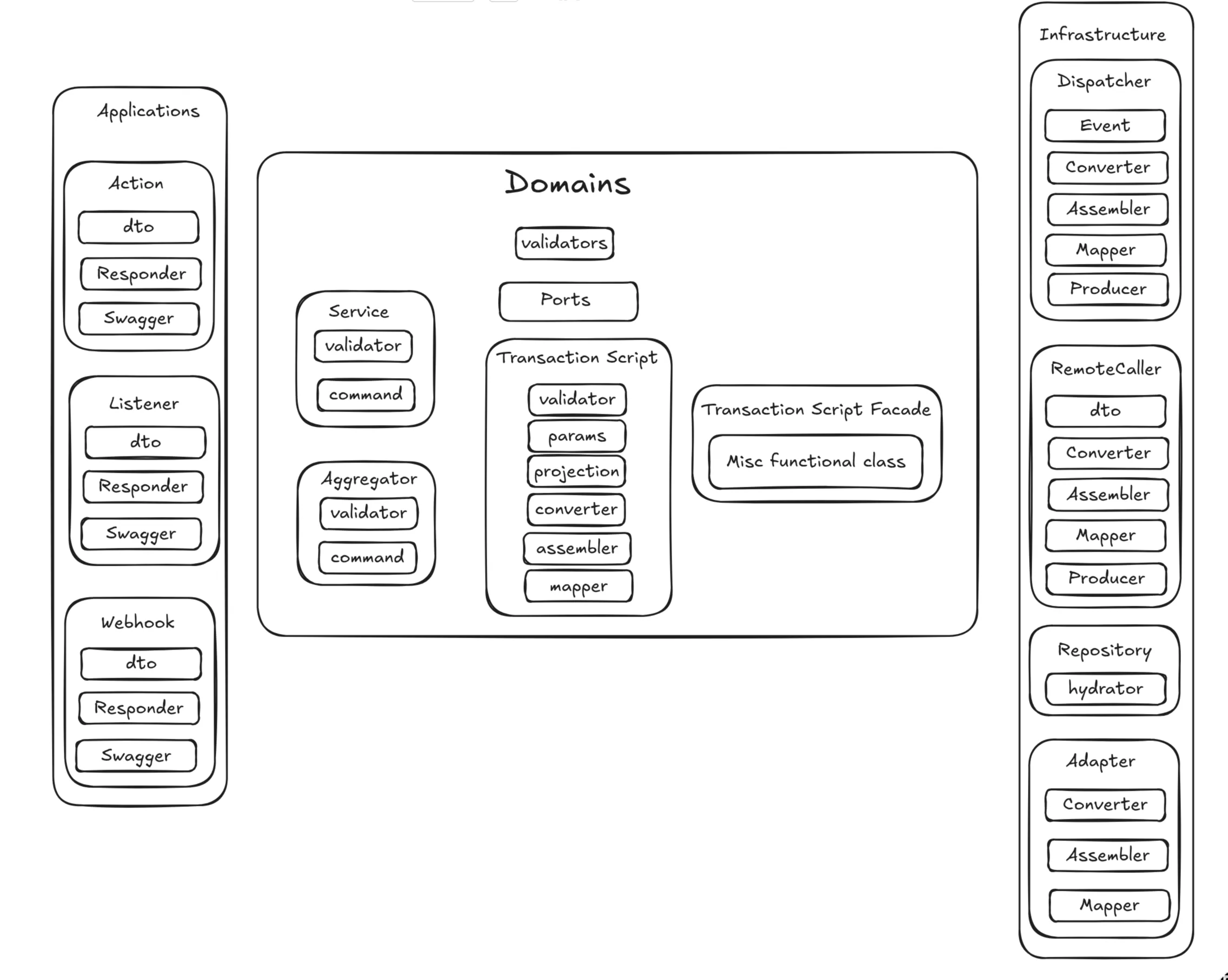

Domain pattern dependency hierarchy showing application, domain, and infrastructure layers

Figure: Stratified domain patterns with enforced dependency direction.

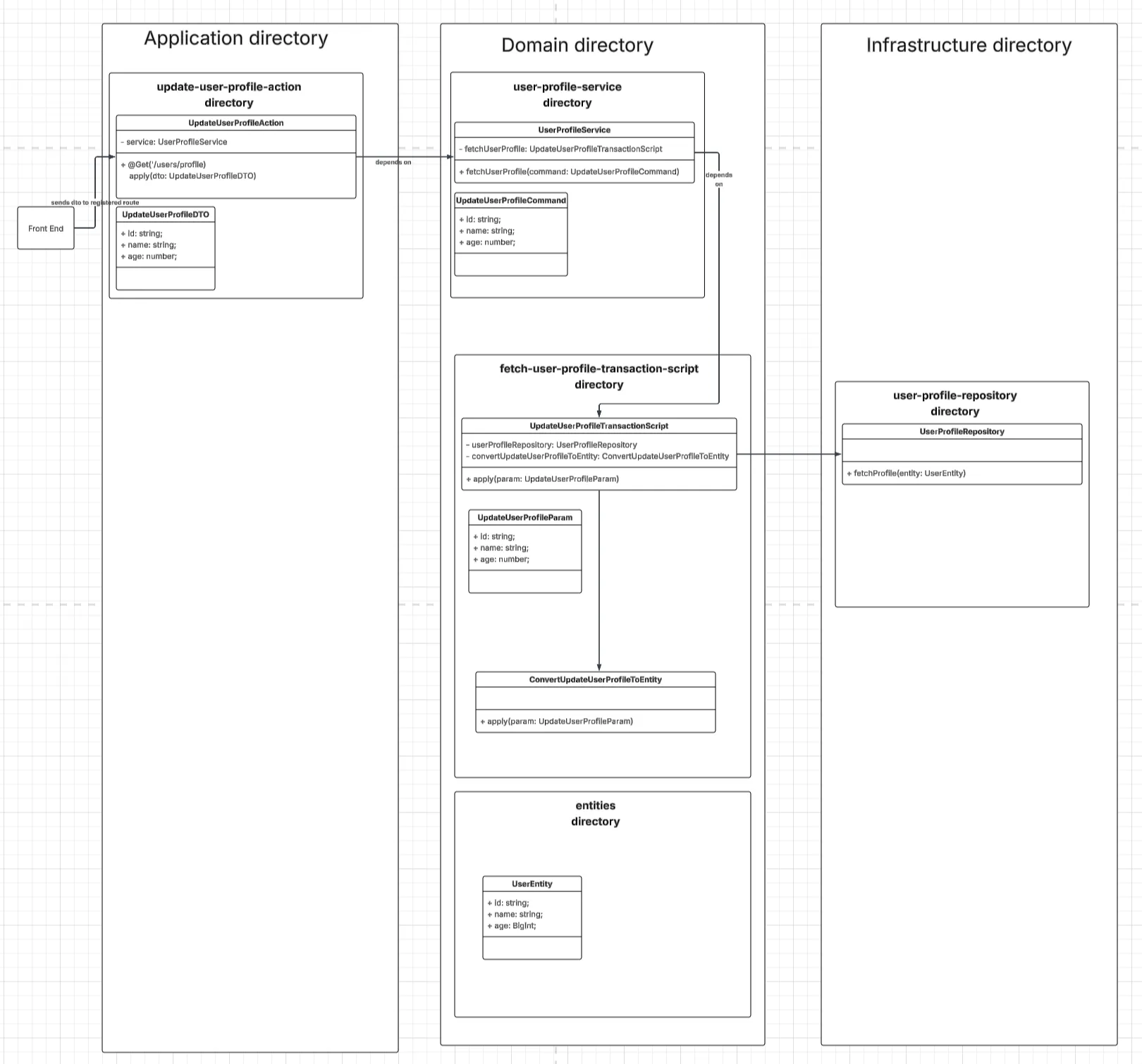

Diagram showing the flow of data, as a request. Going through the different classes, within the different hexagonal folders/layers.

Diagram 1 (layered directories + dependencies)

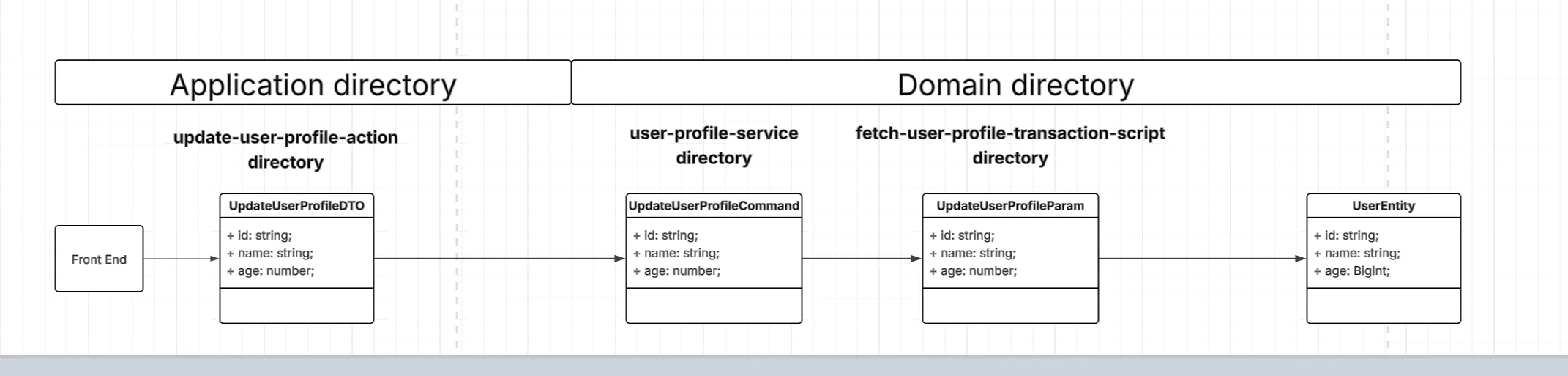

Diagram 2 (type-shape flow DTO → Command → Param → Entity)

The flow

1) Application DTO (owned by the Action)

Front-end sends a DTO shaped for API validation and docs.

Lives next to the Action that consumes it
Used for request validation, swagger, transport concerns
Not referenced by the domain layer
Used for responses

Location

application/controllers/actions/{action}/...dto.ts

2) Domain Service Command (owned by the Service)

The Action calls the domain service, but the service does not depend on the DTO.

Instead, the service defines a Command type (same shape as the DTO, usually) and consumes that.

This keeps the domain service free of transport coupling and allows the service to evolve without dragging the action layer with it.

Location

domain/services/{service}/...command.ts (or colocated inside the service directory)

3) Transaction Script Param (owned by the Transaction Script)

When the service delegates to a Transaction Script, the Transaction Script does not depend on the Command or DTO.

Instead, the Transaction Script defines a Param type that it owns and depends on.

This is a key rule:

The Transaction Script owns its input type.

If the service needs to slightly transform data before delegation, it can do so while still matching the Param shape.

Location

domain/transaction-scripts/{ts}/...param.ts

4) Lower patterns depend on the Param (not on DTO/Command)

Anything inside the Transaction Script folder (converter, mapper, assembler, projection types, etc.) should depend on the Transaction Script’s Param, if they need a shared type at all.

They should not depend on:

DTOs (application layer)
Commands (service layer)

This prevents a situation where every low-level component imports one shared global type, which quickly becomes a coupling hotspot.

Rule of thumb

“If it lives under a Transaction Script, it speaks Param.”

5) Entity (owned by the Domain)

Entities represent the domain model and persistence mapping.

They do not depend on DTOs/Commands/Params.

The conversion into entities happens via converters/assemblers/mappers that live next to the Transaction Script, not in a global utility layer.

Why this works

This approach:

stops “shared-types.ts” from becoming a junk drawer
localizes change (types change where the behavior changes)
reduces cross-layer import churn
makes ownership obvious
keeps domain code from drifting toward transport concerns

Tradeoffs

You will have multiple types with identical shapes (DTO, Command, Param)
That’s intentional — duplication here is a boundary, not waste
When shapes truly diverge (validation vs business rules), the divergence becomes explicit instead of hidden

Summary rules

DTOs live in the Action directory and stay in the application layer.
Services accept Commands that they own (not DTOs).
Transaction Scripts accept Params that they own (not Commands/DTOs).
Converters/Assemblers/Mappers inside a Transaction Script folder should depend on Params (if anything).
Avoid global dumping grounds; colocate types with the behavior they serve.
